How to Replace the Filter in PETLIBRO PLWF115

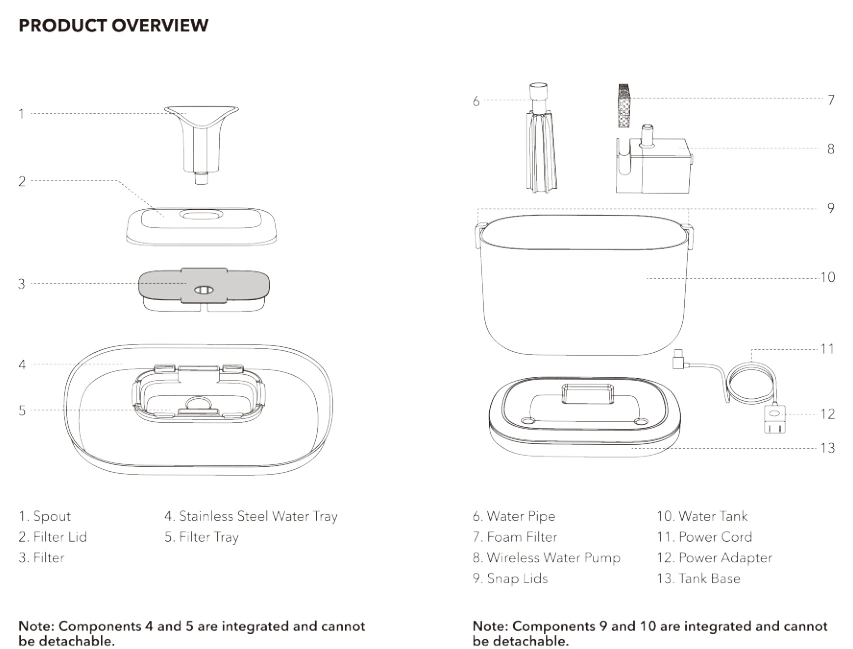

The PETLIBRO PLWF115 uses a flat main filter under the filter lid and a small foam pre-filter fitted onto the pump.

The useful replacement checks are filter soaking, pump foam placement, water-pipe alignment, and careful restart after the tank is returned to the base.

Quick Answer

1. Turn the fountain off.
2. Remove the water tank from the base and pour out water if needed.

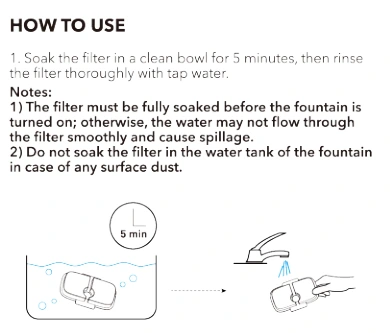

3. Soak the new flat filter in a clean bowl for five minutes, then rinse it.
4. Remove the top lid, optional spout, and filter lid.
5. Remove the used flat filter.
6. Replace the foam filter on the pump.
7. Install the new flat filter and align its hole with the water pipe.
8. Fasten the tray, replace the lid, refill, restart, and confirm smooth water flow.

Items Needed

• New flat replacement filter
• New pump foam filter
• Clean bowl
• Tap water for soaking and rinsing
• Fresh water for refilling
• Small cleaning brush for optional pump cleaning

Before You Start

Turn the fountain off before removing parts.

Remove the tank from the base and pour out water if needed.

Soak the new filter in a clean bowl to avoid introducing loose filter dust into the fountain tank.

Replacement Instructions

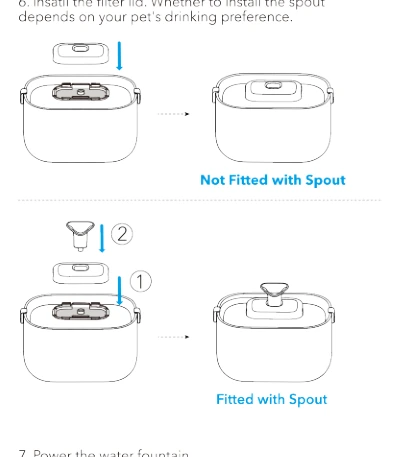

Step 1: Remove the Lid and Old Filter

Lift off the top lid. If your fountain uses the optional spout, remove the spout first. Remove the filter lid, then lift out the used flat filter.

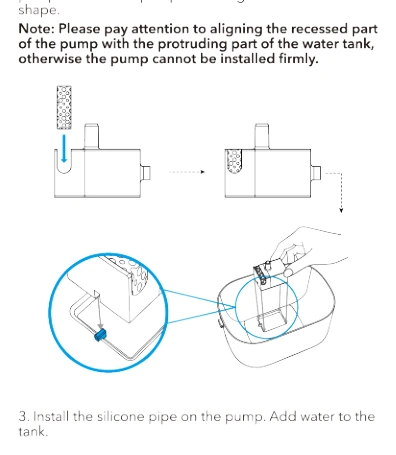

Step 2: Replace the Foam Filter

Pull the old foam filter off the pump. Fit the new foam filter into the pump groove so it sits flush, then align the pump with the slot in the tank.

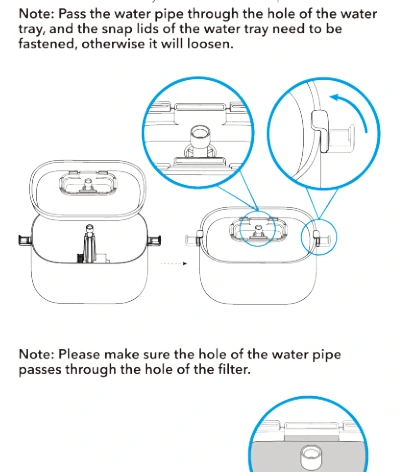

Step 3: Install the Flat Filter and Align the Pipe

Place the soaked and rinsed flat filter under the lid area. Make sure the filter lies flat and that the water pipe passes through the water tray and filter openings.

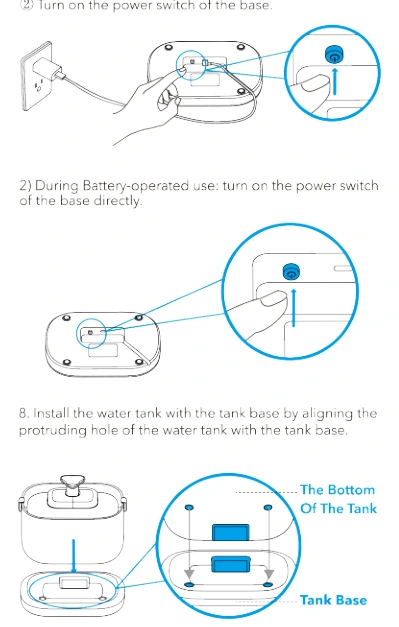

Step 4: Reassemble and Restart

Fasten the snap lids, reinstall the filter lid, refit the spout if used, add water, place the tank back onto the base, and switch the fountain on.

Maintenance Tips

• Replace the flat filter and foam filter at least once every two weeks.
• Clean the pump and fountain at least once every two weeks.

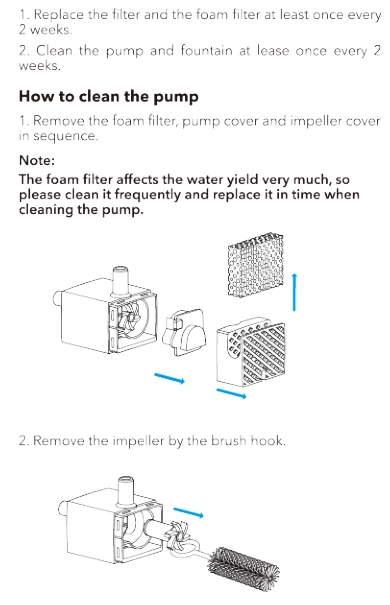

• When changing filters, it is a good time to remove the foam filter, pump cover, and impeller cover, clean the pump parts, rinse them, and reassemble the pump.

Confirmed Replacement Timing

The PLWF115 PDF confirms replacing the flat filter and foam filter at least once every two weeks, and cleaning the pump and fountain at least once every two weeks.

Important Notes

FAQ

Final Summary

For the PETLIBRO PLWF115, follow the matching PDF for the exact filter type, preparation time, part order, and model-specific checks. Use only the diagrams and steps for this model when replacing filters.
