How to Replace the Filter in PETLIBRO PLWF105

The PETLIBRO PLWF105 Dockstream App Monitoring Automatic Pet Water Fountain uses a Dockstream flat filter under the lid and a foam pre-filter on the pump.

The replacement process is to soak and rinse the flat filter, remove the upper parts, replace both filter components, and confirm smooth flow after restart.

Quick Answer

1. Turn off the fountain and disconnect it from power.
2. Remove the tank from the base and pour out water if needed.
3. Soak the new flat filter in a clean bowl for five minutes, then rinse it.
4. Remove the spout if installed, then remove the filter lid and water tray.
5. Replace the foam filter on the pump.
6. Install the soaked flat filter and align it around the water pipe.
7. Reassemble, refill, reconnect power, and confirm smooth water flow.

Items Needed

• New Dockstream flat filter
• New pump foam filter
• Clean bowl
• Tap water for soaking and rinsing
• Fresh water for refilling

Before You Start

Disconnect power before opening the fountain.

Remove the tank from the base and pour out water if needed.

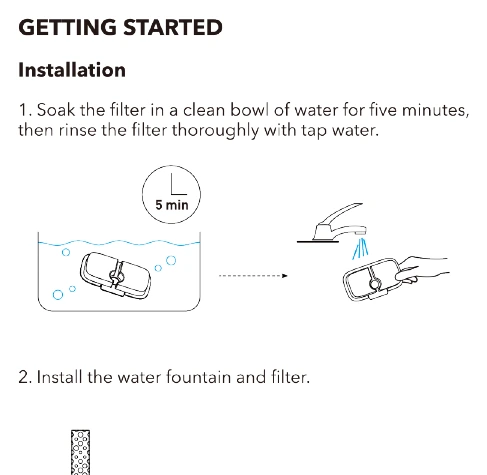

Soak the flat filter in a clean bowl for five minutes and rinse it thoroughly under tap water.

Replacement Instructions

Step 1: Remove the Top Parts

Lift off the spout if installed, then remove the filter lid and water tray.

Step 2: Replace the Foam Filter

Pull the old foam filter off the pump. Fit the new foam filter into the pump groove.

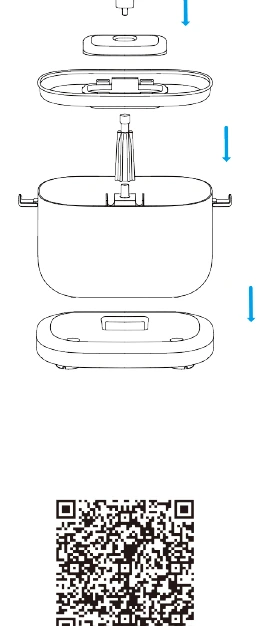

Step 3: Replace the Flat Filter

Remove the used flat filter. Place the soaked new filter into the tray and align the filter opening with the water pipe.

Step 4: Reassemble and Restart

Reinstall the water tray and snap lids, refit the lid and spout if used, refill the tank, place it on the base, reconnect power, and check water flow.

Maintenance Tips

• Replace the flat filter and foam filter at least once every two weeks.
• Clean the pump and fountain at least once every two weeks.
• Heavy use or multiple cats may require more frequent filter changes.

Confirmed Replacement Timing

The PLWF105 PDF confirms that both the flat filter and pump foam filter should be replaced at least once every two weeks.

Important Notes

FAQ

Final Summary

For the PETLIBRO PLWF105, follow the matching PDF for the exact filter type, preparation time, part order, and model-specific checks. Use only the diagrams and steps for this model when replacing filters.
